We bought this Scrambler from Scott Mines' sister in-law 2 years ago.

It's an 1982, has a 304, T18, D20
3" body lift, 4" spring
Axles: 4:10 gears with upgraded shafts, front ARB, rear Detroit.

Our plans 4.0L AW4 from a 1994 mated to a D300
1" body lift and Rubicon Express 4.5" YJ springs.

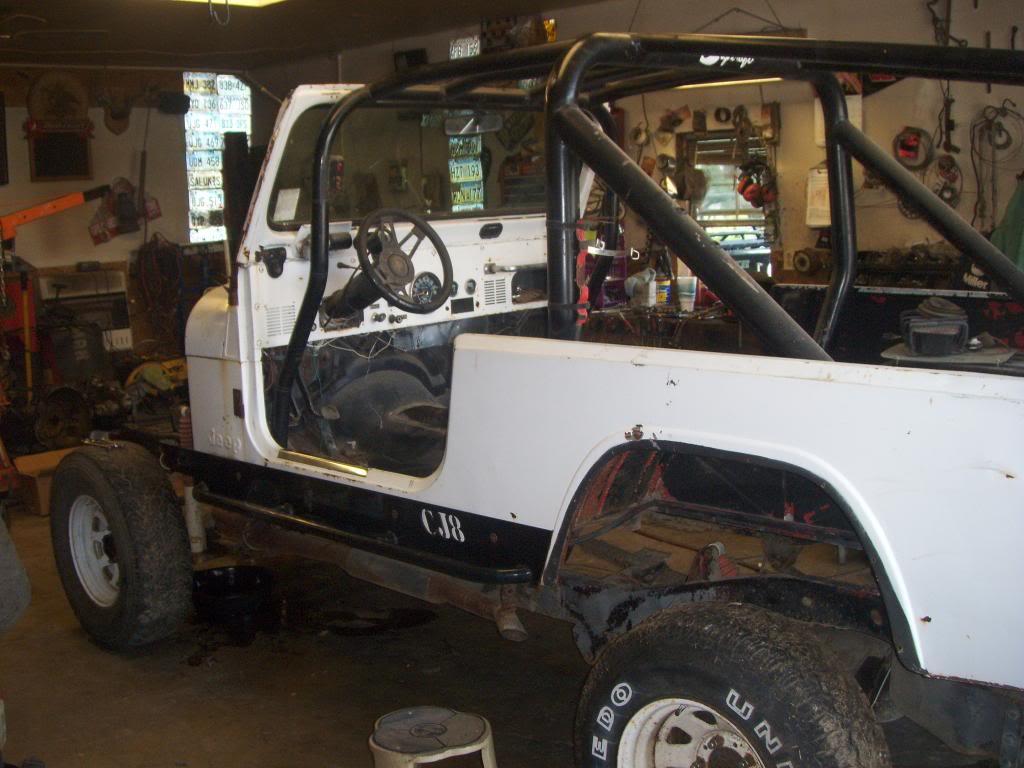

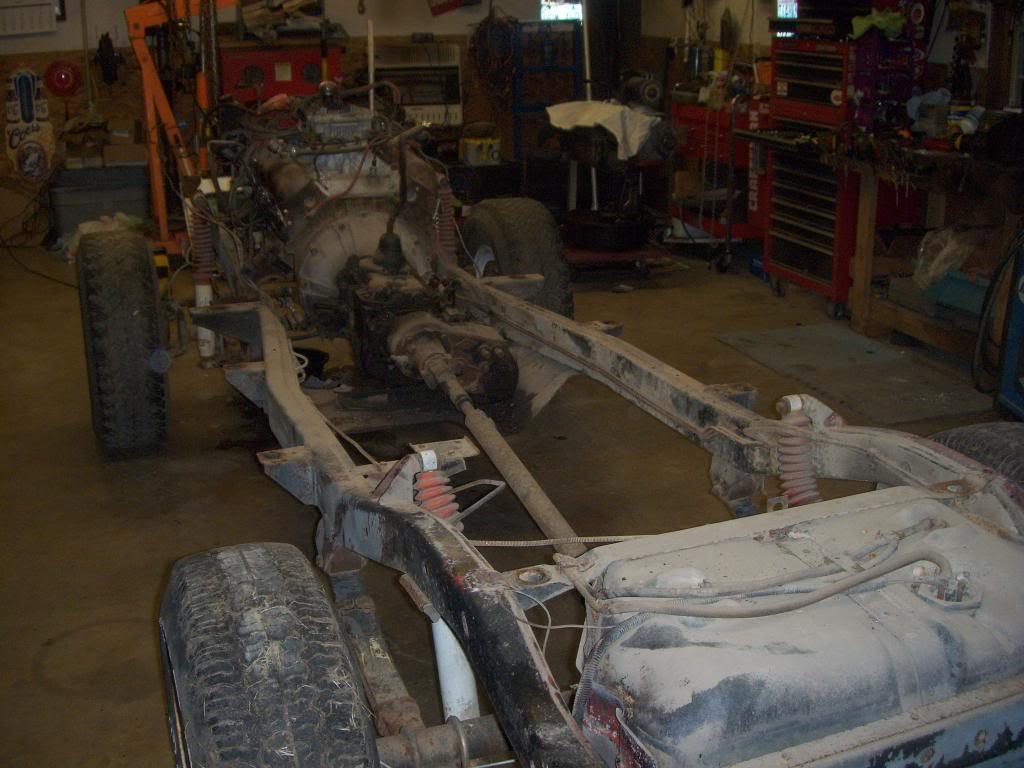

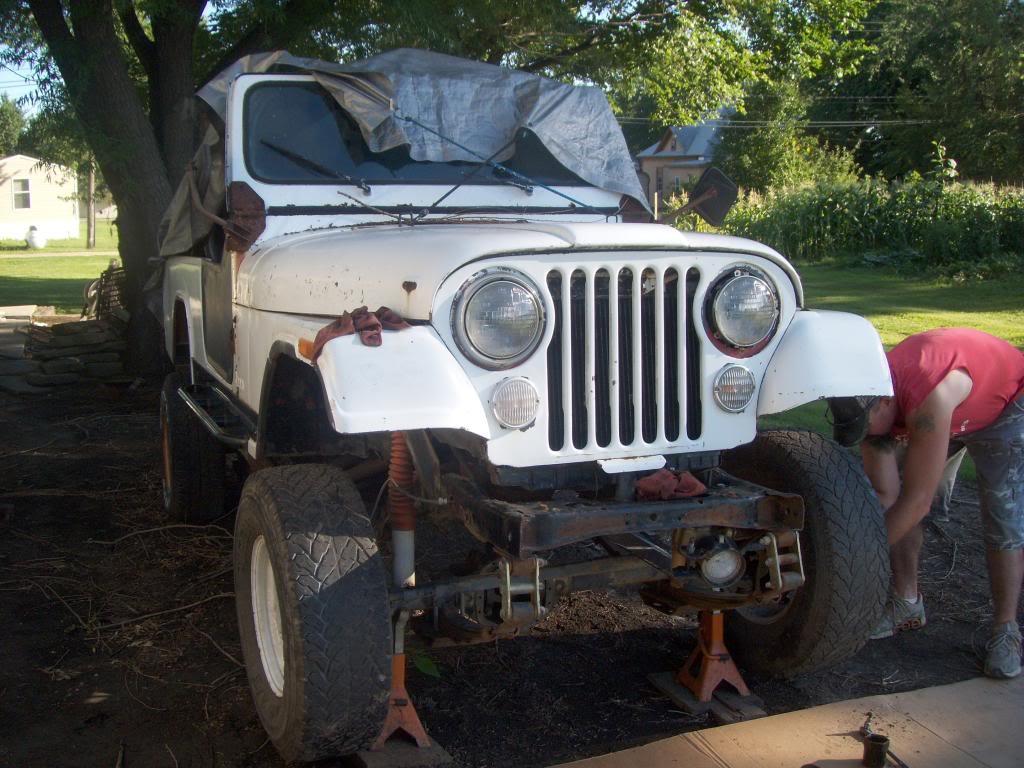

When we started last June










Donor XJ

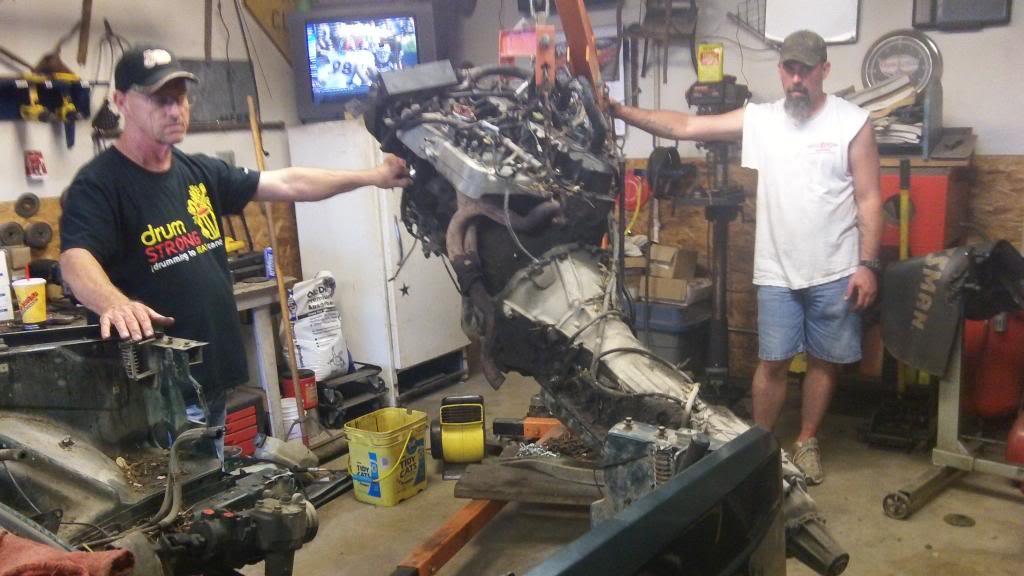

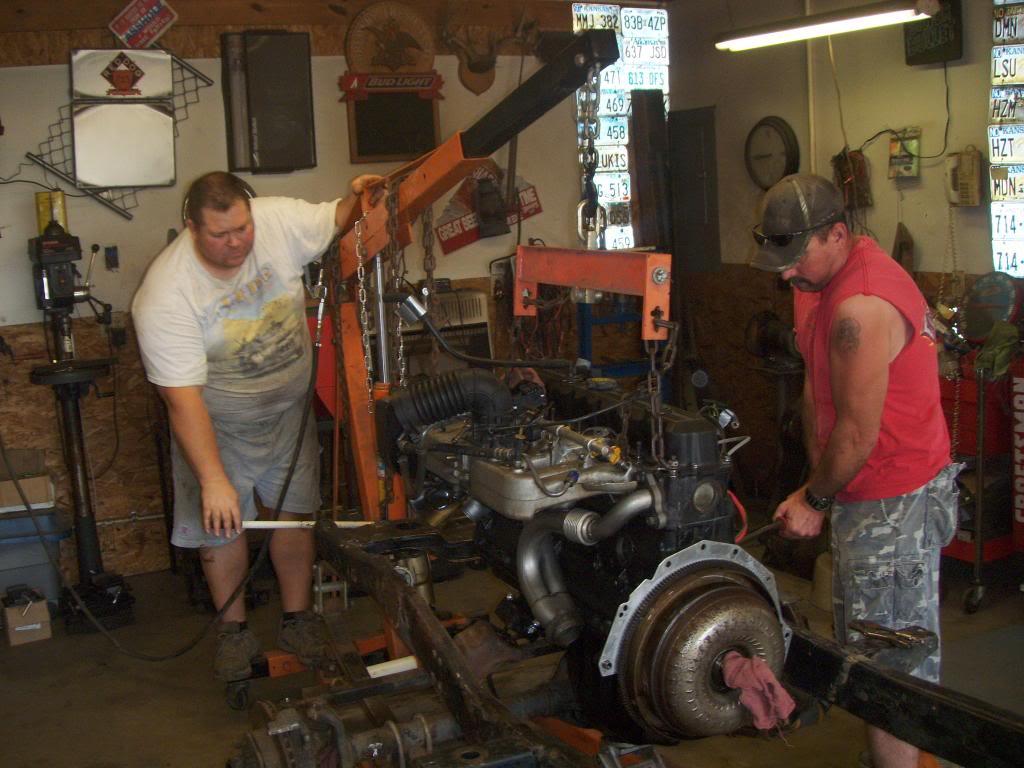

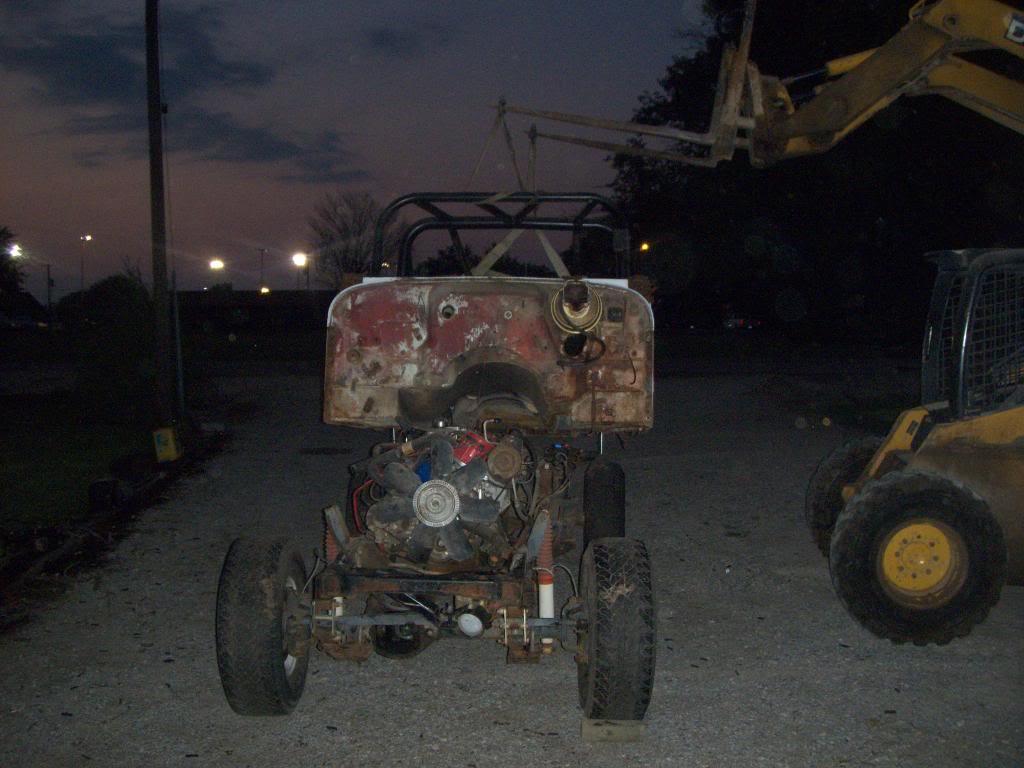

Couple buddies helping out


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#2

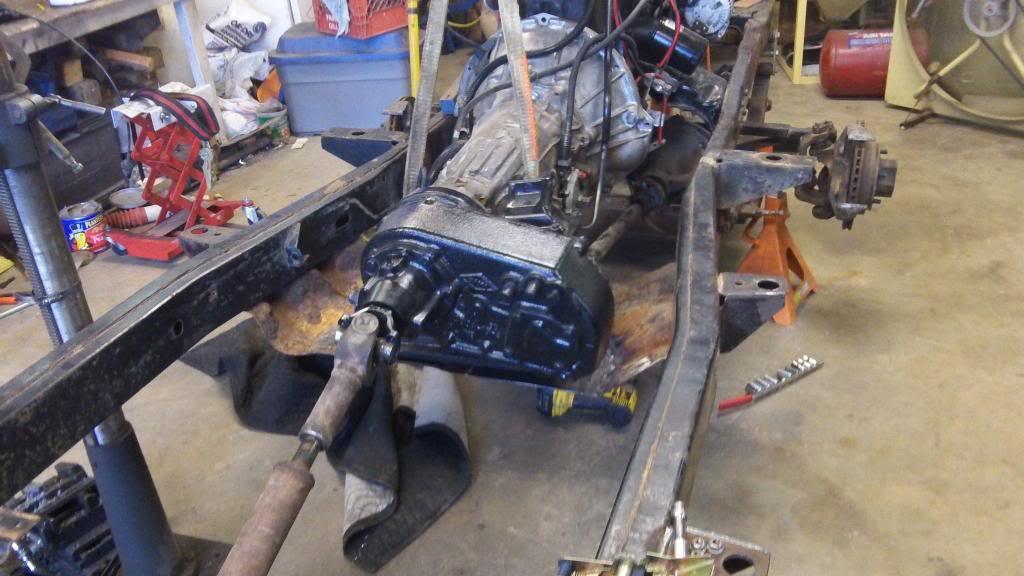

Trial fit up

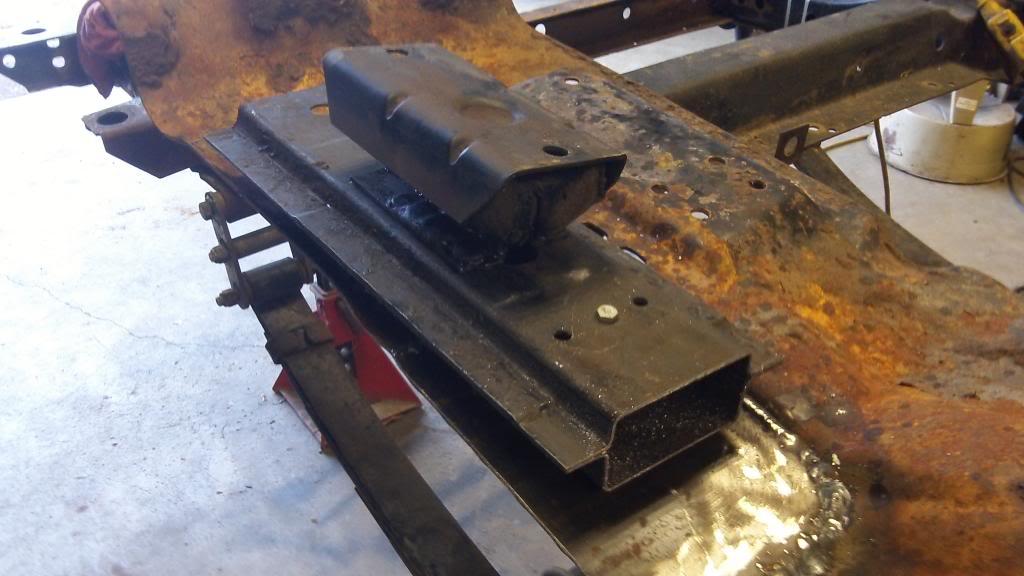

Using part of the XJ cross member grafted to the stock CJ skid plate
Clocked the D300 just enough to take the bump out in skid plate






Using a stock XJ transmission mount


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#4

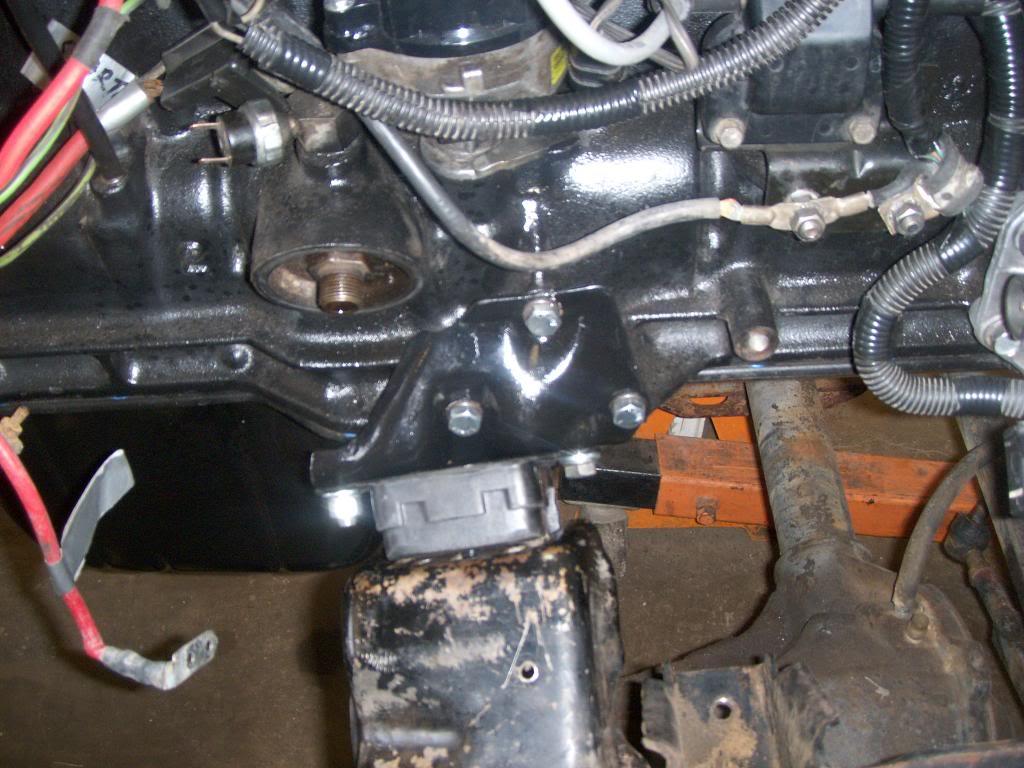

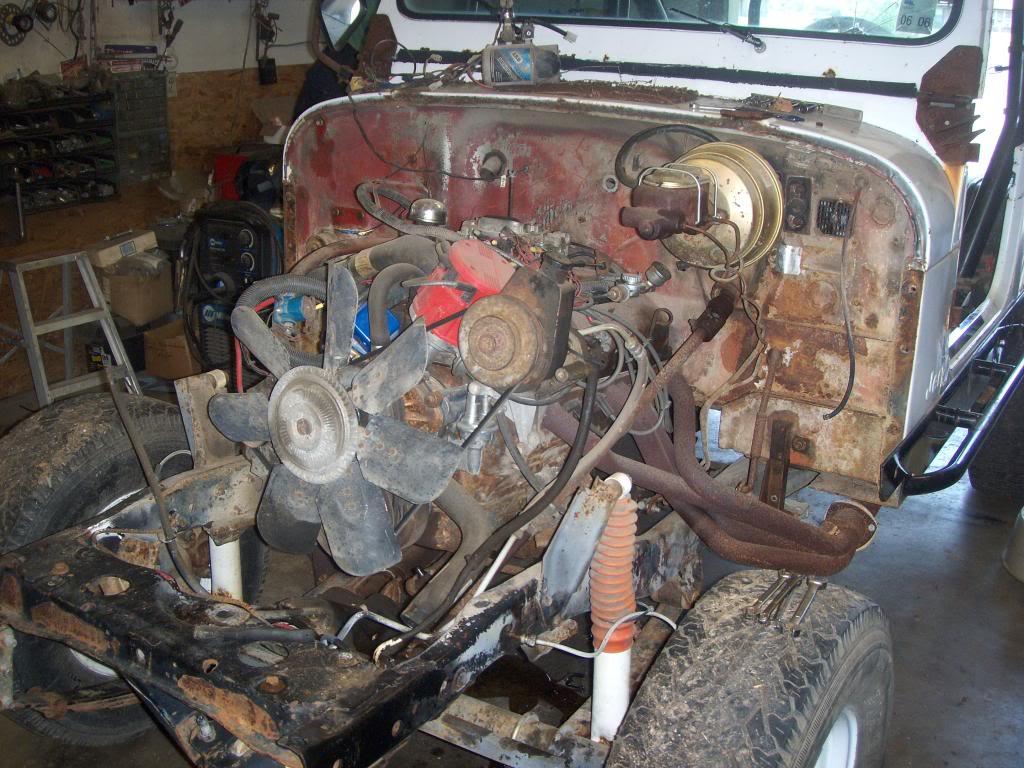

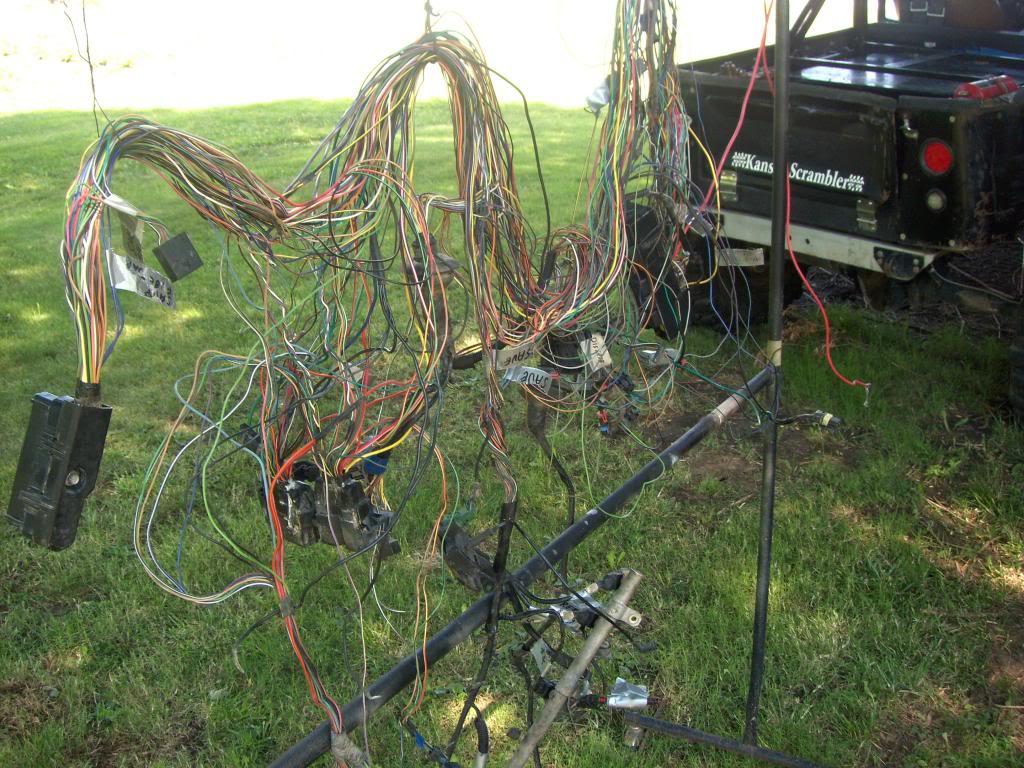

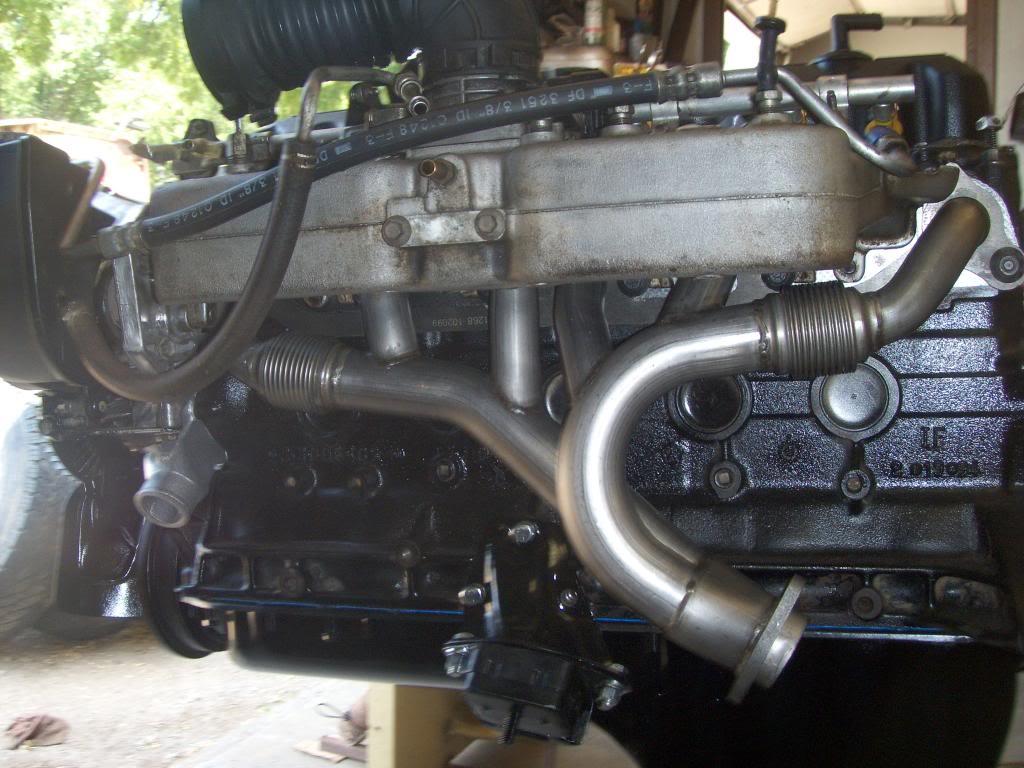

Swapped to a YJ fan - dummy pulley replaces A/C compressor

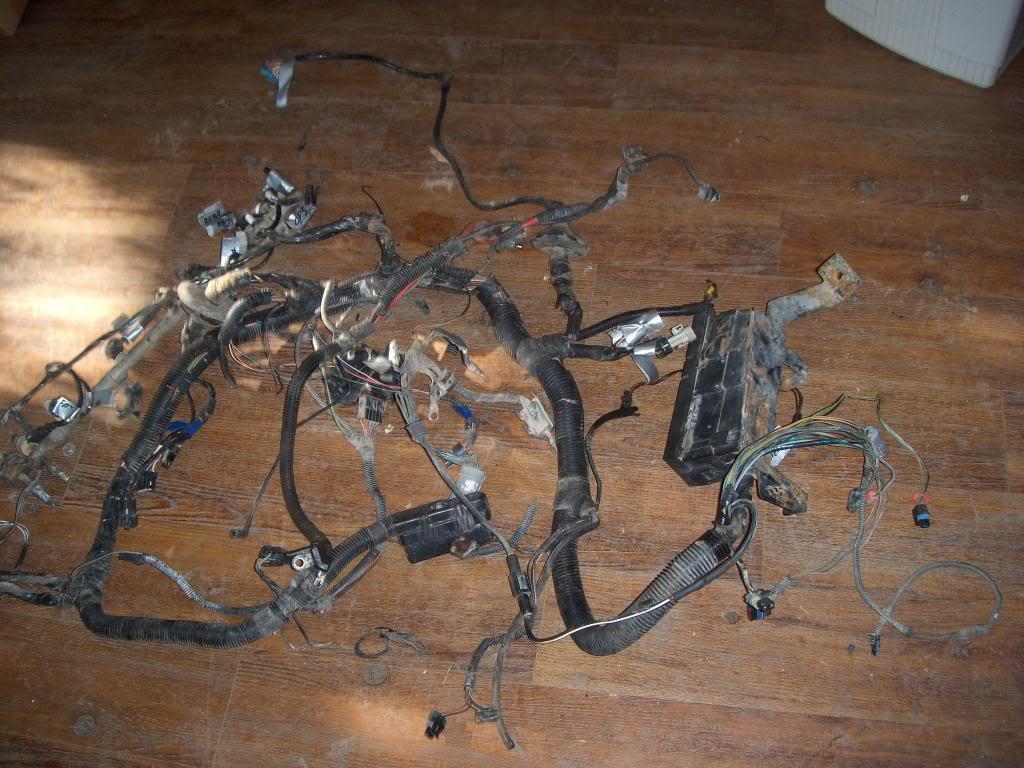

Pap starting to weed the XJ engine harness






certifiablejeep

Definitley Certifiable
LIFETIME
CJ-8.com Member
City
Bedford
State
NH
#6
I was trying to come up with something snappy like, "I see you are airing out all your dirty wiring"... but the laundry to wiring reference doesn't seem to work.

cb


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#7
Pap rigged us up a frame rotiserie from a couple engine stands, CJ front bumper and some misc metal laying around.
Works great, can spin a full 360

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0209_zps37d091cc.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0209_zps37d091cc.jpg" border="0" alt=" photo 101_0209_zps37d091cc.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0210_2_zps73c3ea69.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0210_2_zps73c3ea69.jpg" border="0" alt=" photo 101_0210_2_zps73c3ea69.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0207_2_zps84ff59f5.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0207_2_zps84ff59f5.jpg" border="0" alt=" photo 101_0207_2_zps84ff59f5.jpg"/></a>

Frame plates front and rear plus new rear cross member. Rotiserie made this job alot easier than past frame builds.

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0222_2_zps2f1deef6.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0222_2_zps2f1deef6.jpg" border="0" alt=" photo 101_0222_2_zps2f1deef6.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0204_2_zps3b237c55.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0204_2_zps3b237c55.jpg" border="0" alt=" photo 101_0204_2_zps3b237c55.jpg"/></a>

Loaded and off for powder coating


<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0224_zps735a7444.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0224_zps735a7444.jpg" border="0" alt=" photo 101_0224_zps735a7444.jpg"/></a>

Freshening up the axles
Really like our scrap yard axle stand/holder.
<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8142_zps57f07db2.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8142_zps57f07db2.jpg" border="0" alt=" photo HPIM8142_zps57f07db2.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8144_zps06af5b85.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8144_zps06af5b85.jpg" border="0" alt=" photo HPIM8144_zps06af5b85.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8159_zps84afa3b8.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8159_zps84afa3b8.jpg" border="0" alt=" photo HPIM8159_zps84afa3b8.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8155_zps521af271.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8155_zps521af271.jpg" border="0" alt=" photo HPIM8155_zps521af271.jpg"/></a>


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#8

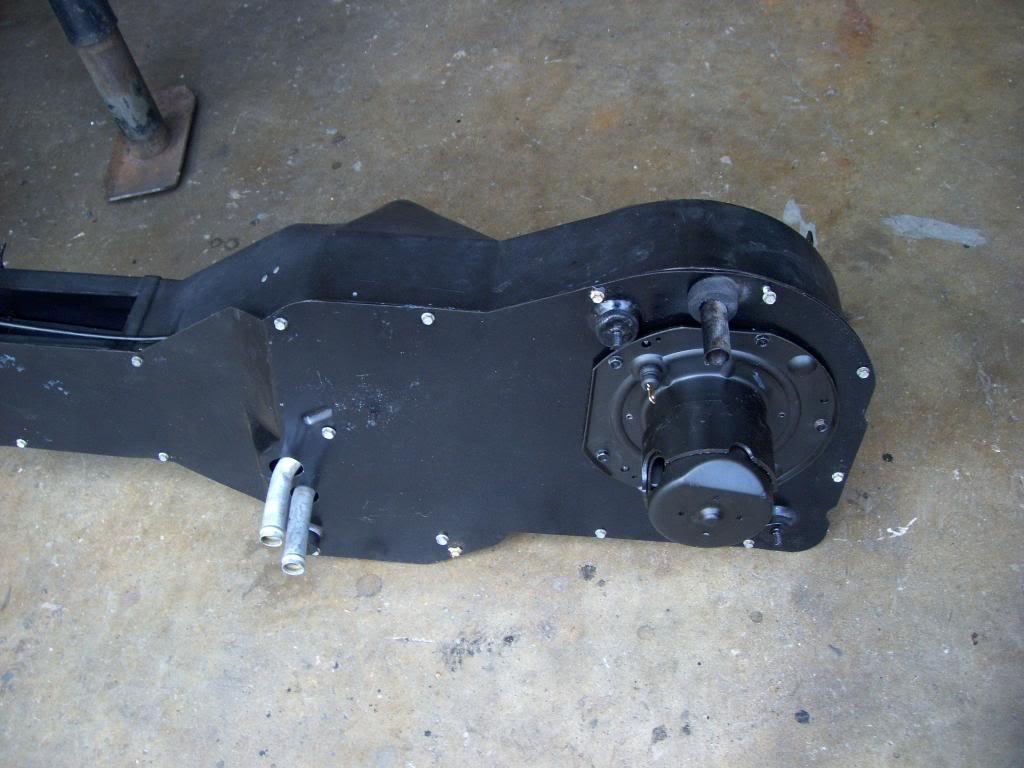

Parts and more parts, blasted and ready for paint

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8166_zps3f4ba82a.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8166_zps3f4ba82a.jpg" border="0" alt=" photo HPIM8166_zps3f4ba82a.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8176_zps3d59c967.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8176_zps3d59c967.jpg" border="0" alt=" photo HPIM8176_zps3d59c967.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8177_zps427e7a57.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8177_zps427e7a57.jpg" border="0" alt=" photo HPIM8177_zps427e7a57.jpg"/></a>


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#10
Fabbed U-Bolt flip parts

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8181_zpsc4538220.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8181_zpsc4538220.jpg" border="0" alt=" photo HPIM8181_zpsc4538220.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8182_zps9c8c78d4.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8182_zps9c8c78d4.jpg" border="0" alt=" photo HPIM8182_zps9c8c78d4.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8183_zps1af57a2e.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8183_zps1af57a2e.jpg" border="0" alt=" photo HPIM8183_zps1af57a2e.jpg"/></a>

Frame back from powder coating, mounted on rotisserie.

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8185_zps687a1306.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8185_zps687a1306.jpg" border="0" alt=" photo HPIM8185_zps687a1306.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8184_zpse93fbc47.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8184_zpse93fbc47.jpg" border="0" alt=" photo HPIM8184_zpse93fbc47.jpg"/></a>

New spring perches on rear axle

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8212_zps599a0a5a.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8212_zps599a0a5a.jpg" border="0" alt=" photo HPIM8212_zps599a0a5a.jpg"/></a>

Rear axle shock mounts, burning them in

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8211_zps687b4d0b.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8211_zps687b4d0b.jpg" border="0" alt=" photo HPIM8211_zps687b4d0b.jpg"/></a>

Front axle shock mounts

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8222_zpsb5e9a72f.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8222_zpsb5e9a72f.jpg" border="0" alt=" photo HPIM8222_zpsb5e9a72f.jpg"/></a>

Ford Shock Towers

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8221_zps59bffddc.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8221_zps59bffddc.jpg" border="0" alt=" photo HPIM8221_zps59bffddc.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8218_zpsfa94b282.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8218_zpsfa94b282.jpg" border="0" alt=" photo HPIM8218_zpsfa94b282.jpg"/></a>

Last edited:

CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#11
Rear axle all shiney!

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8223_zps3833c033.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8223_zps3833c033.jpg" border="0" alt=" photo HPIM8223_zps3833c033.jpg"/></a>

Axles going under it

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8198_zps2001a93e.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8198_zps2001a93e.jpg" border="0" alt=" photo HPIM8198_zps2001a93e.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8197_zps8ce48897.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8197_zps8ce48897.jpg" border="0" alt=" photo HPIM8197_zps8ce48897.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8195_zps112a3f57.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8195_zps112a3f57.jpg" border="0" alt=" photo HPIM8195_zps112a3f57.jpg"/></a>


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#13

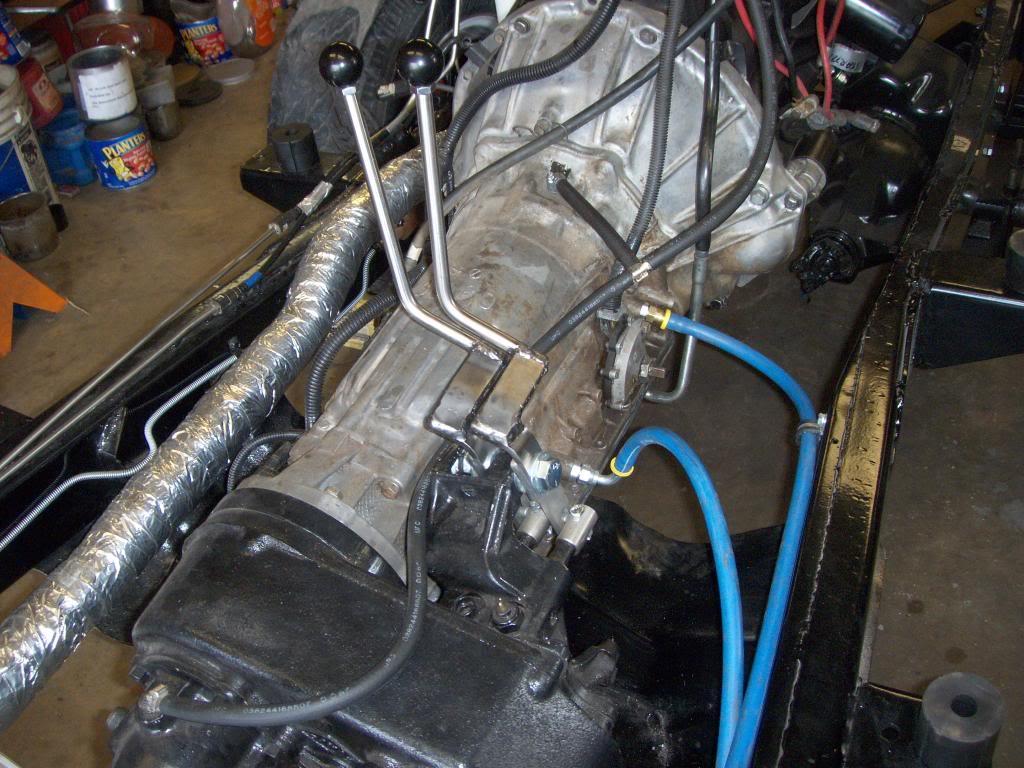

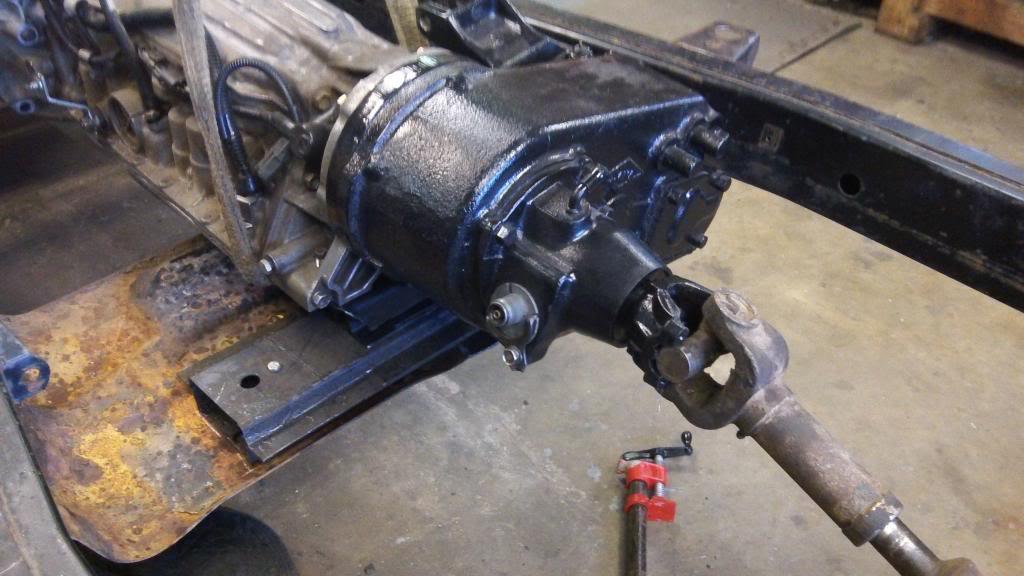

AW4 Transmission mount
Not sure what AW4 to D300 adapter/clocking ring we used.
It was in with the massive collection of stuff we bought from bobcat.
We cut out the bump from the the stock CJ skid plate.
Used a stock AW4 mount and part of the XJ cross member.
At first fit up the XJ cross member put us to high. We then drilled out the spot welds and just used the upper part of it.

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8202_zps9ed2f256.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8202_zps9ed2f256.jpg" border="0" alt=" photo HPIM8202_zps9ed2f256.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8204_zpse75cbef9.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8204_zpse75cbef9.jpg" border="0" alt=" photo HPIM8204_zpse75cbef9.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8205_zpsbe2aa297.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8205_zpsbe2aa297.jpg" border="0" alt=" photo HPIM8205_zpsbe2aa297.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8217_zps01d53463.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8217_zps01d53463.jpg" border="0" alt=" photo HPIM8217_zps01d53463.jpg"/></a>


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#15

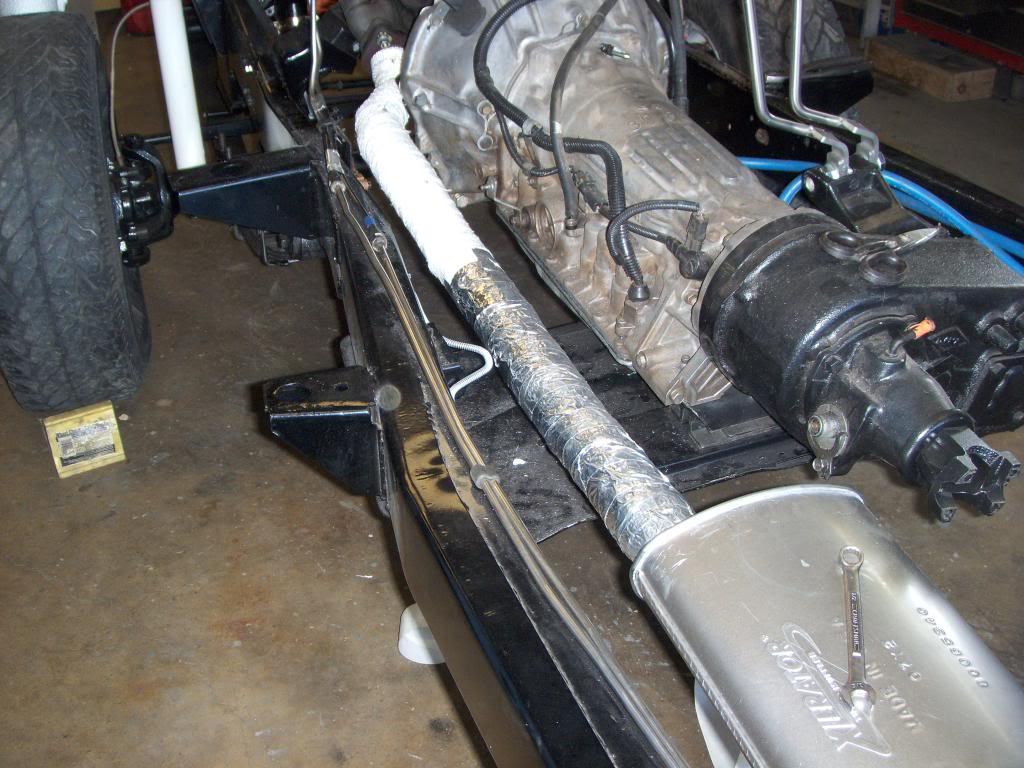

New way cool flare tool!
Made all new brake hard lines!

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0269_zps794a276a.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0269_zps794a276a.jpg" border="0" alt=" photo 101_0269_zps794a276a.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0270_zps85eadcd6.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0270_zps85eadcd6.jpg" border="0" alt=" photo 101_0270_zps85eadcd6.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0272_zps890b65ce.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0272_zps890b65ce.jpg" border="0" alt=" photo 101_0272_zps890b65ce.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0271_zps8328bb7f.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0271_zps8328bb7f.jpg" border="0" alt=" photo 101_0271_zps8328bb7f.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/101_0273_zpscfa66fd7.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/101_0273_zpscfa66fd7.jpg" border="0" alt=" photo 101_0273_zpscfa66fd7.jpg"/></a>


CHIEFWAHO

SOA VP
LIFETIME
CJ-8.com Member
SOA Board Member
City
Thayer
State
KS
#17
Pap's been busy fabbing

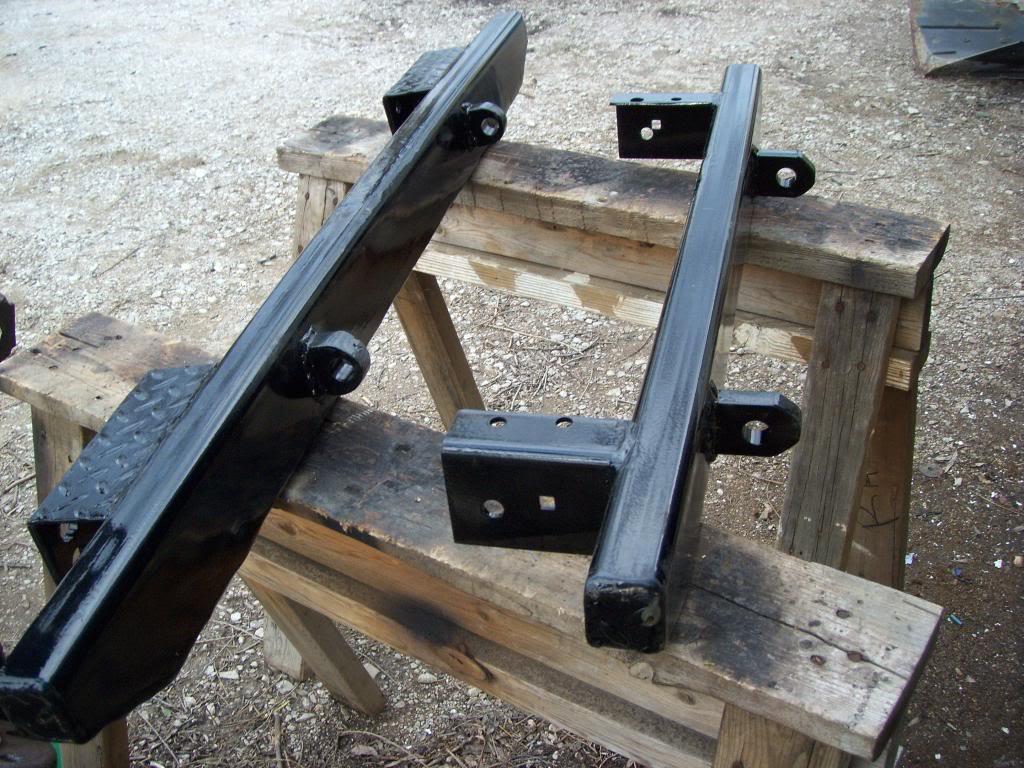

Bumpers
<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8312_zpsf5c345df.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8312_zpsf5c345df.jpg" border="0" alt=" photo HPIM8312_zpsf5c345df.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8313_zpsf7c34cba.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8313_zpsf7c34cba.jpg" border="0" alt=" photo HPIM8313_zpsf7c34cba.jpg"/></a>

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8314_zps20ac3704.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8314_zps20ac3704.jpg" border="0" alt=" photo HPIM8314_zps20ac3704.jpg"/></a>

Tube Fenders (going to use CJ inners)

<a href="http://s1018.beta.photobucket.com/user/ADAMSKEN/media/Moderate%20Scrambler%20Build/HPIM8317_zps92524252.jpg.html" target="_blank"><img src="http://i1018.photobucket.com/albums/af304/ADAMSKEN/Moderate%20Scrambler%20Build/HPIM8317_zps92524252.jpg" border="0" alt=" photo HPIM8317_zps92524252.jpg"/></a>

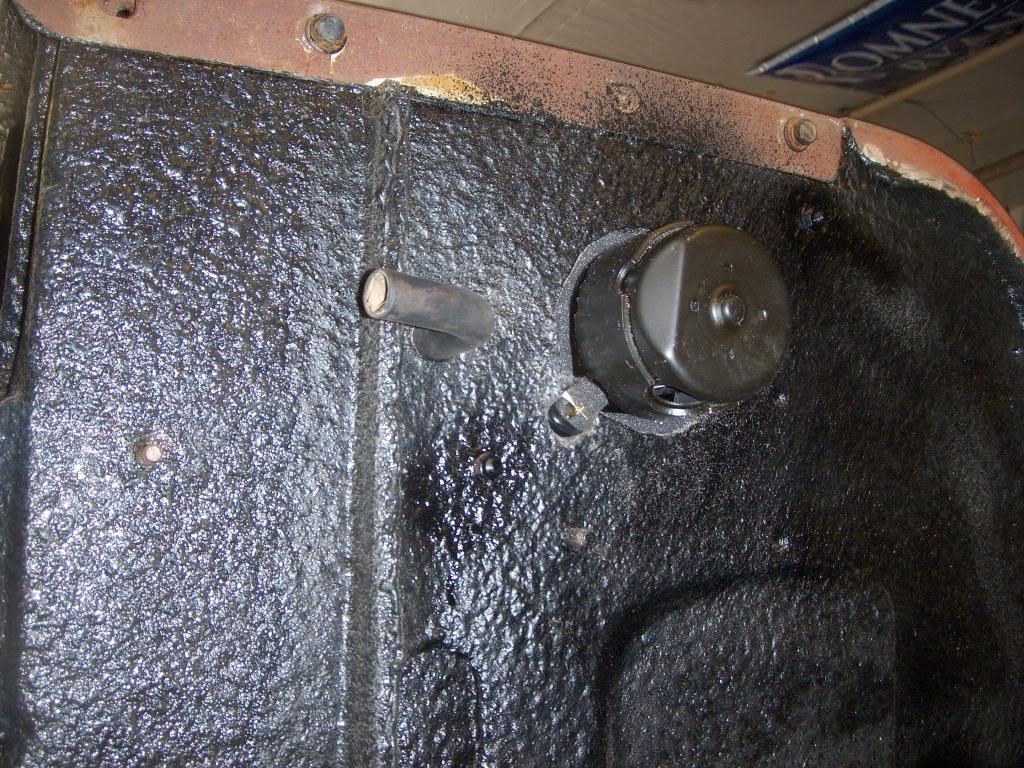

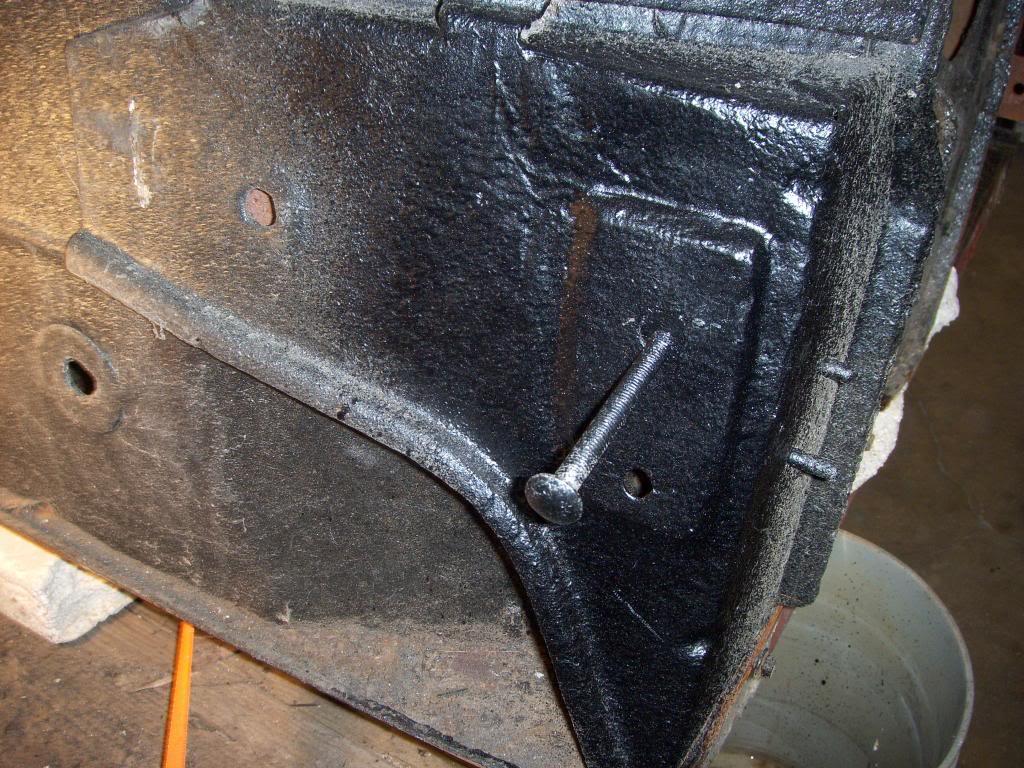

Top
