Fender brace pictures

[mysunnshine]

Does anybody have pics of the fender braces by chance? I have one that I just can't get to fit where I want it to go... LOL



[CHIEFWAHO]

Maybe these will help:

Post in thread '1983 Scrambler resto'

Oct 5, 2010

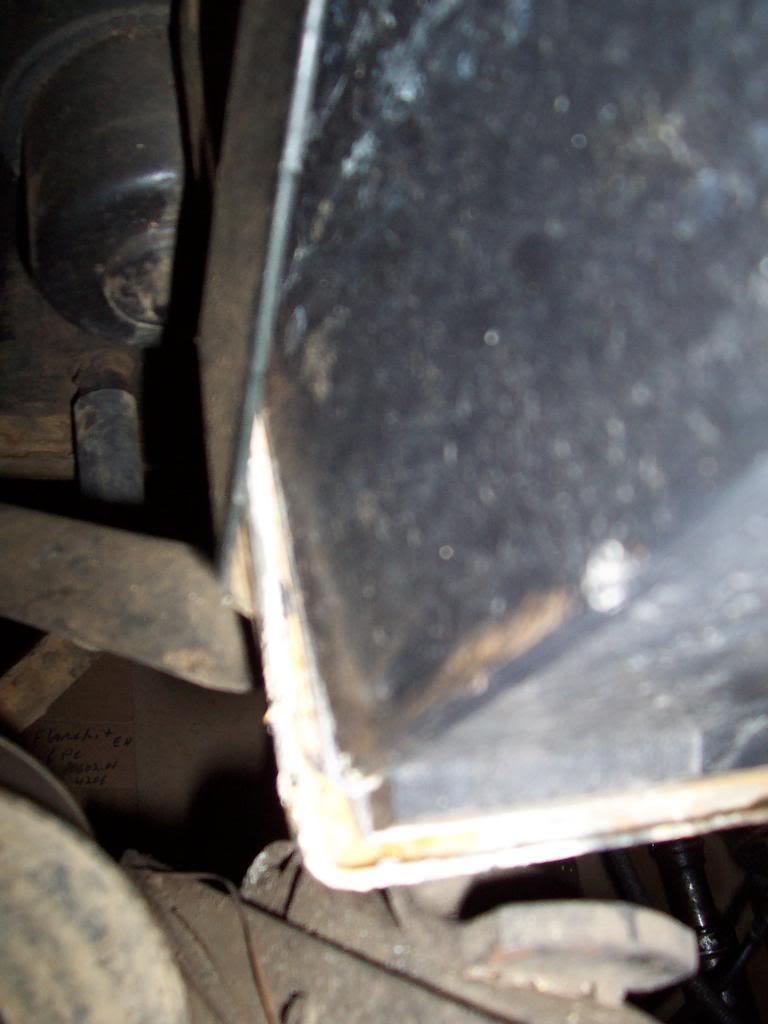

Here are some pics that I took of the fender/body tub braces. Hope these help you out.

These first pics are off my green Scrambler. It is kinda dirty, but all these braces are painted the body color. Pics aren't the clearest because it is hard to take pics of these areas with all the factory mounted stuff in the way.

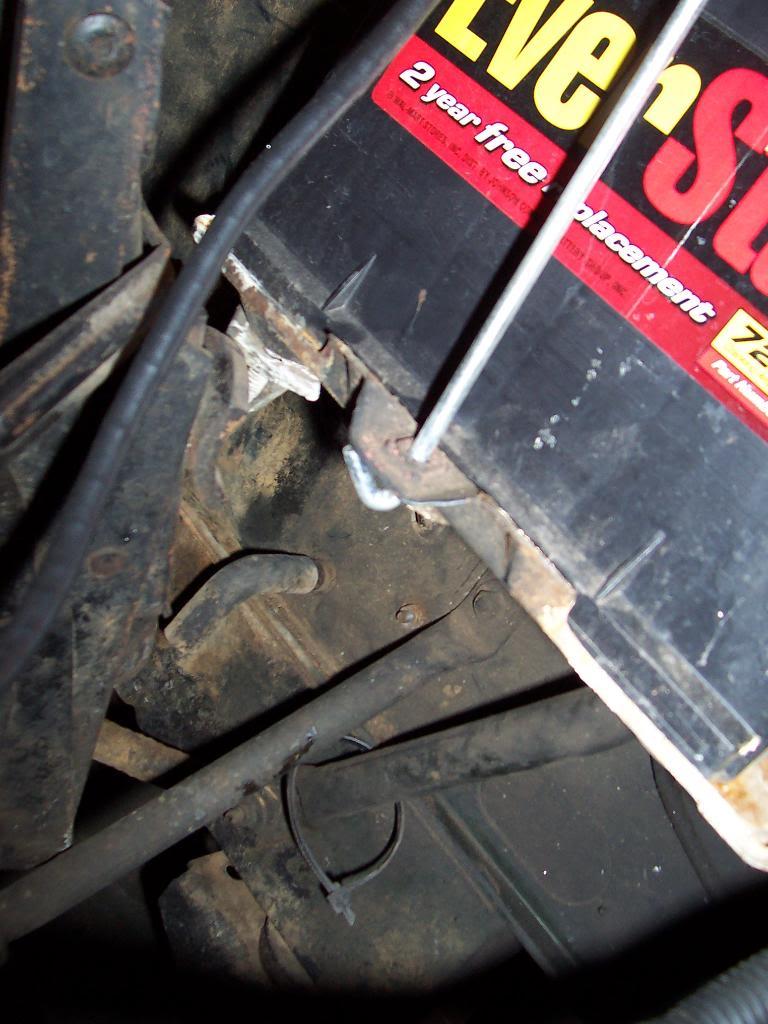

Passenger side, 4 braces total. Two hold up the battery tray, two go from body tub to fender.

...

• spankrjs



[gpassida]

I have an aftermarket dual battery tray so the factory battery supports on the passenger side aren't shown. Here's what I have:



[FLCJ8]



[FLCJ8]



[FLCJ8]

In case thereare any questions , not mine.
These are the handy work of Raymond (spankrjs)



[FLCJ8]



[FLCJ8]

Here are others,.

Post in thread 'Request: Pics of under the hood fender bracket setup'

Feb 6, 2020

This is a right of passage for CJ builds... I had a thread just like this 7 years ago!!

• tower210



[mysunnshine]

Thanks guys. I appreciate the photos-
