Quick update on this one. I have been running Warn Full Floating rear axles, with lock in hubs, in the rear of this Scrambler for over 30,000 miles. Recently, I have noticed a little lash in the drive train, mainly noticeable while shifting gears, or slightly letting off the throttle while decelerating. Not terrible, but noticeable. My tan Scrambler, also running Warn Full Floating rear axles, with lock in hubs, in the rear, also developed this "lash". On my tan Scrambler, I swapped the lock in hubs out in favor of drive flanges. I decided to do the same with this Scrambler.

The people who made the drive flanges that I used in my tan Scrambler are no longer in business, so I purchased some 30 spline Dana 44 drive flanges, made by RCV, from BJ's Offroad:

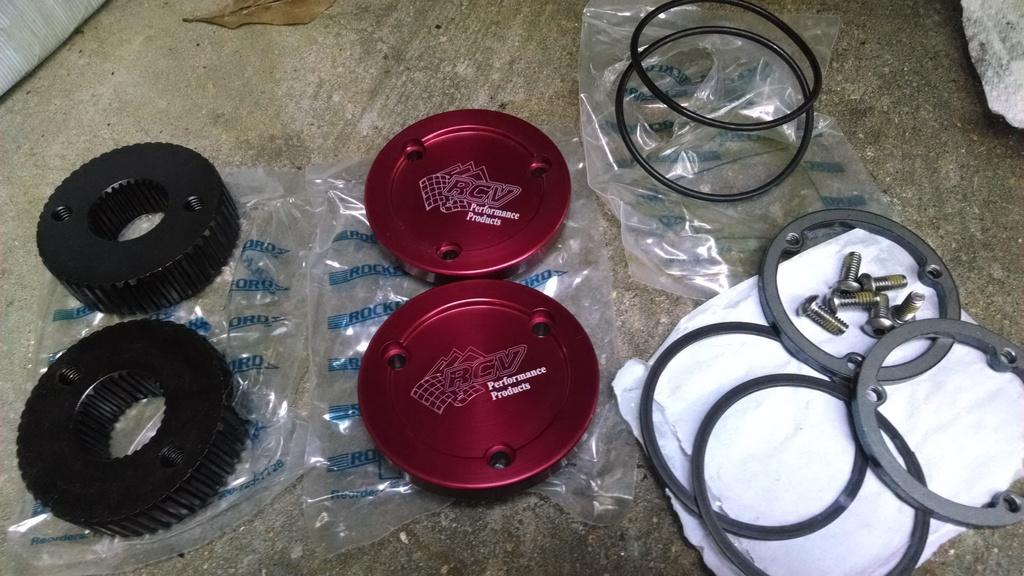

The red dust covers match the paint LOL. A few quick install pictures, pretty straight forward, even thought the parts did not come with any installation instructions.

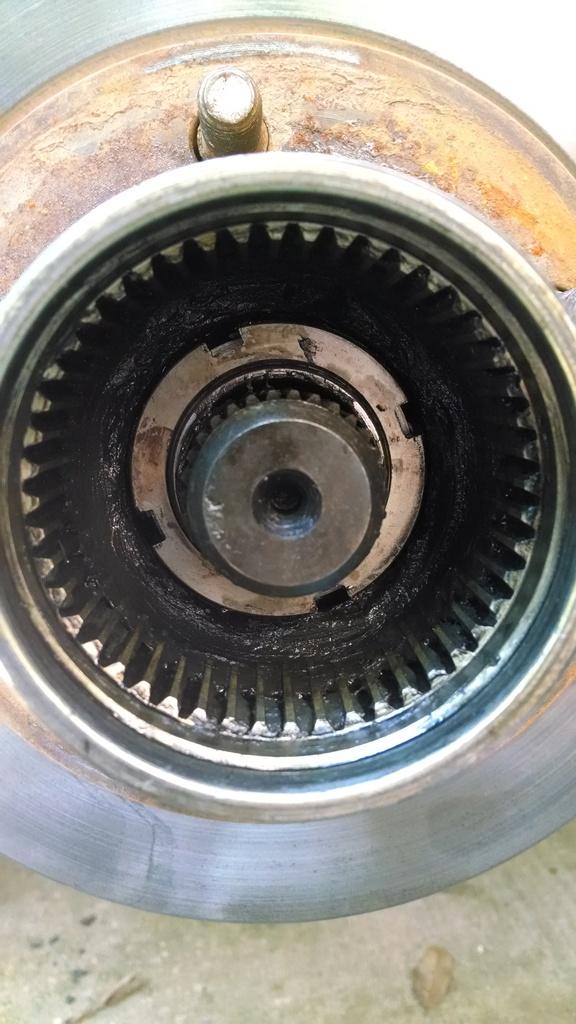

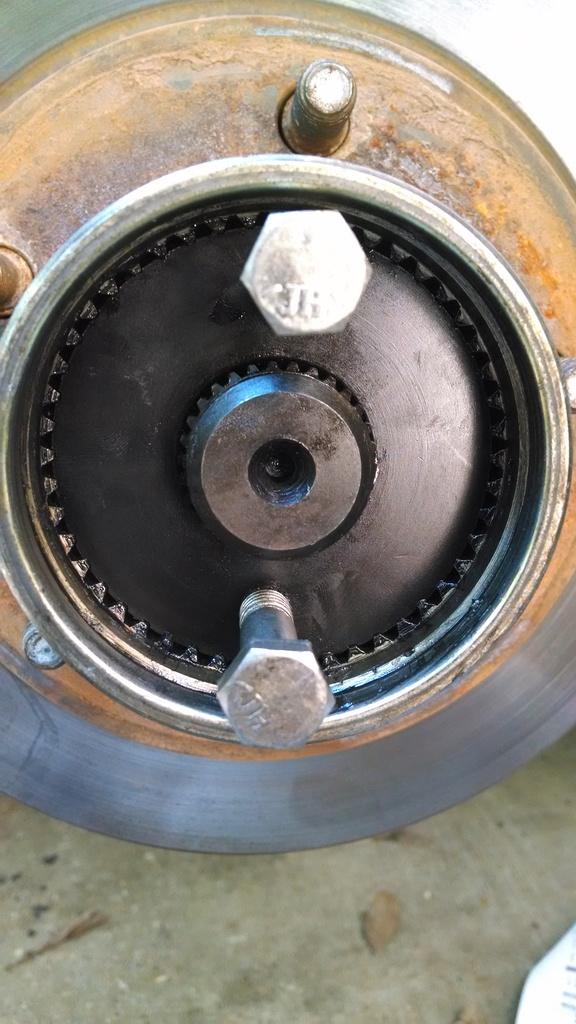

Rear hub, lock in hub components removed, excess grease wiped out, wheel bearing outer lock nut visible, no that that's important just yet:




Installing a drive slug. I wiped a thin coat of oil over the outer/inner splines to make installation a bit easier. The slugs come with two threaded holes. I installed bolts in the two holes, then gently tapped the drive slugs into place:

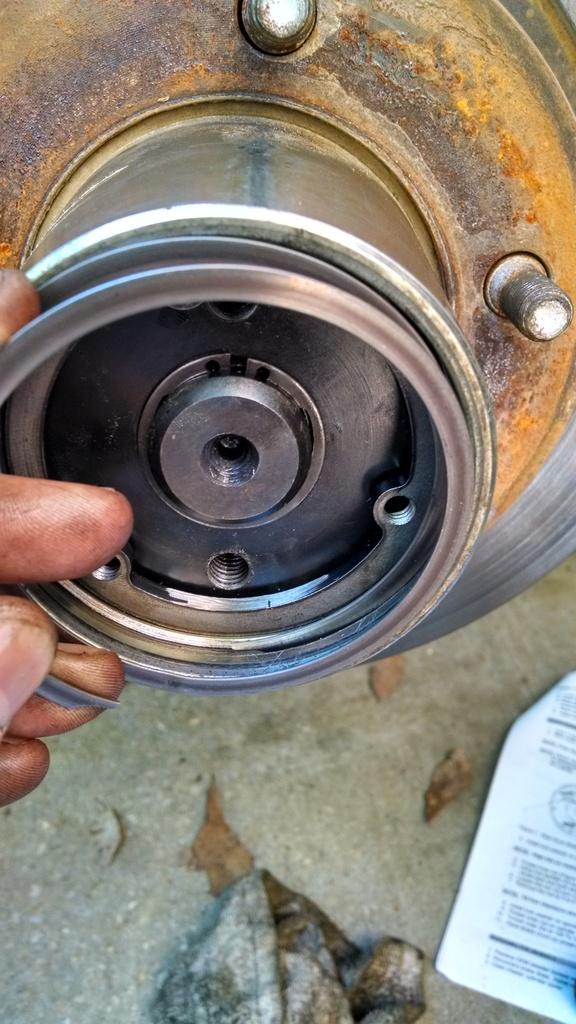

After installing the slugs, this metal part with the three threaded holes goes in. I also reinstalled the axle shaft retaining clip at this time.

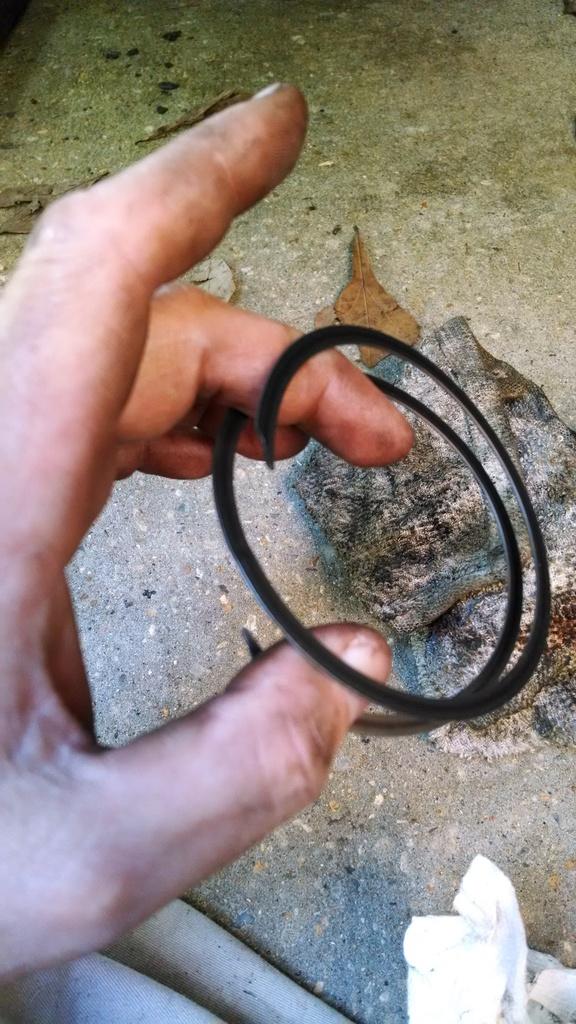

The Warn lock in hubs use a big metal "C" clip to retain the inner hub part. RCV supplied these thingies:




To install the weird "thingies", kind of spread it out, start one end, then kind of push each "strip" around and in. Actually works pretty good, a bit easier to remove compared to the usual big snap "C" ring thingies:

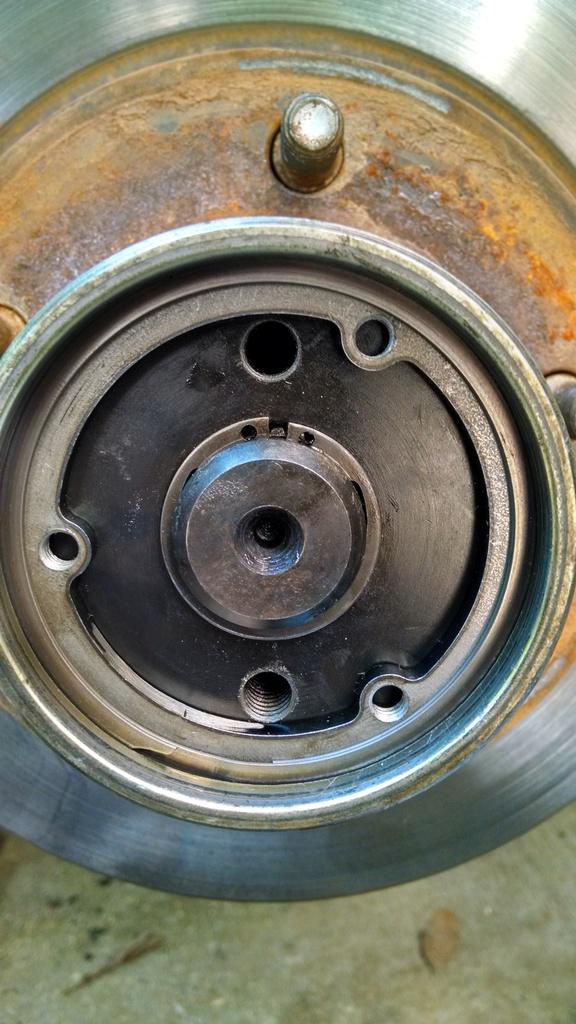

Snap ring "thingy" installed fully in the hub groove:

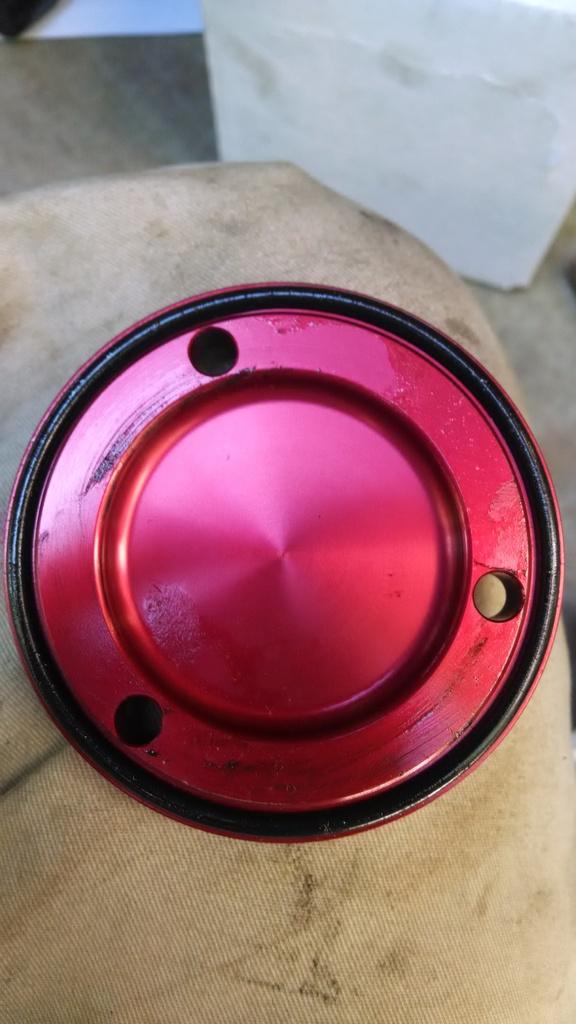

I then oiled up the dust cover o-ring, installed it on the back of the dust cover:

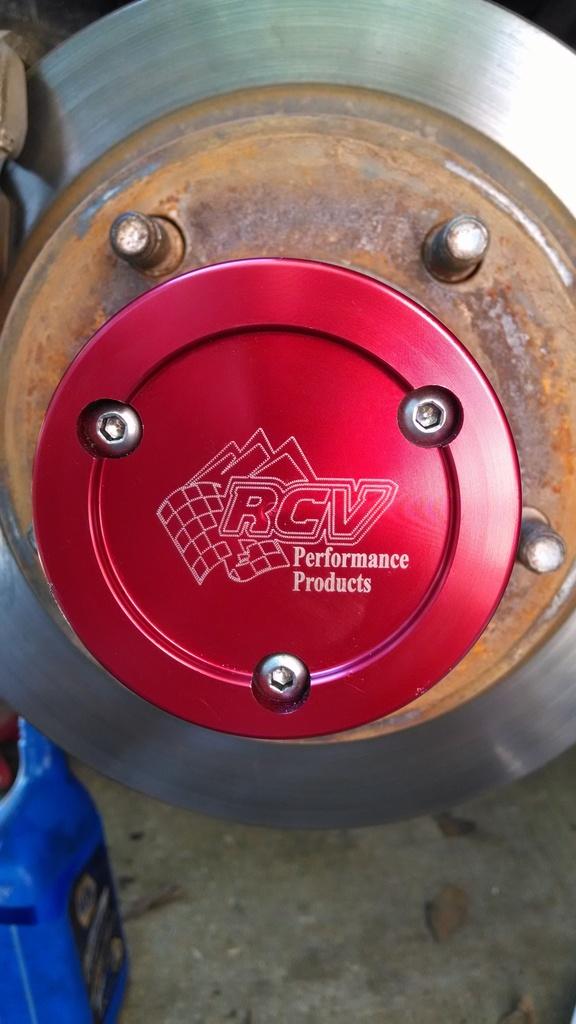

Tightened down the three, pre-lock-tited cap screws, finished:




With the new drive flanges installed, the lash that was present with the rear lock in hubs is gone. After swapping out the rear full float axle kit lock in hubs on both my Scramblers that are so equipped, and a buddy with my old CJ-7 that had the Warn Full Float axle kit installed, I will make a recommendation: Unless you flat tow often, I would just start out with the drive flanges.

One "issue" - the stock center caps WILL NOT clear these drive flanges. There is very slight interference. I am going to clean out the gunk that has accumulated inside the center caps and see if they will fit. If they wont fit, then I will either lightly bore out the center caps, or space them out a hair, depending on how much interference there is. It was really close with the Warn internal mount hubs, but they cleared. The OD of the drive flange cap is just a hair too much.


spankrjs

Scrambler Junkie
LIFETIME
CJ-8.com Member
City
Biloxi
State
MS
I briefly alluded to the "wheel bearing outer lock nut" in the above post.

On my last off road trip, I got stuck up against a boulder and a tree. In order to get free, we winched the rear end sideways. Probably should have jacked it up, but we just kind of drug it sideways. The ground was muddy.

Anyway, when I pulled off the tires, I noticed that both rear hubs wheel bearing were a hair loose. The outer nuts were still tight. I assume that the sideways pulling caused this :shrug:

Anyway, I had to loosen the outer lock nuts, which are tightened to 150 foot pounds :eek:

Both the inner, and outer, wheel bearing lock nuts are the what I call "Ford/Fullsize Jeep four square slot" style. In order to keep the socket on the outer nut, while tightening or loosening, I do this:

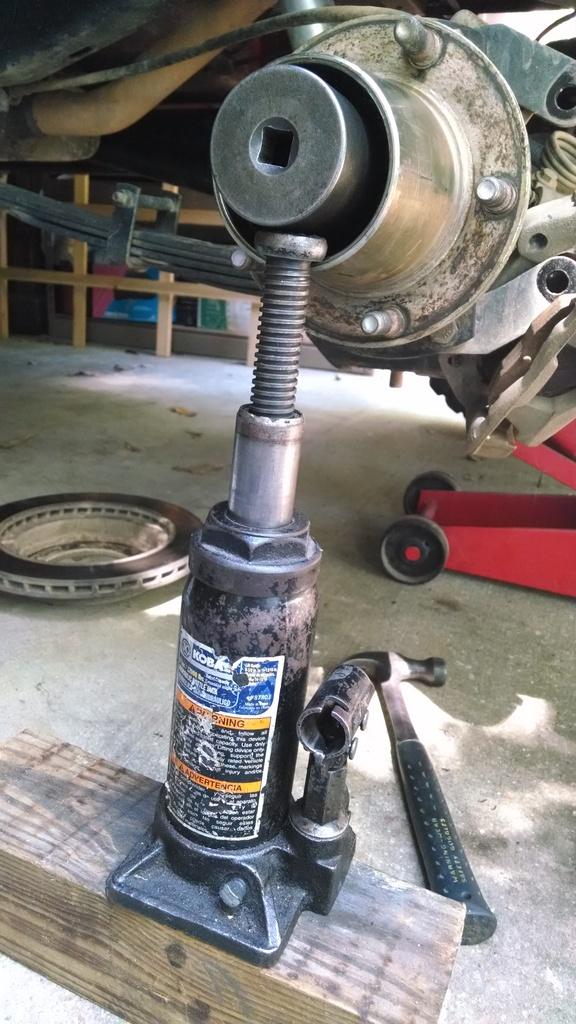

By putting the jack under the socket, it keeps it from wanting to slip downward. 150 foot pounds is a bunch, this little trick helps me keep the socket squarely on the nut :thumbsup: :wave:

EDIT - after adjusting the inner nuts on both sides, I can safely say that all the rear wheel bearing are still in good shape. Both sides spin free. Just be careful with those side pulls :twocents::rolleyes:


CJ7Pilot

18436572
LIFETIME
CJ-8.com Member
City
Yuba City
State
CA
...I will make a recommendation: Unless you flat tow often, I would just start out with the drive flanges....
I may just do that. I'll be installing a used set soon, and I'll bet the splined slugs are worn just like you describe.

Also, I can tell that one of the locking hubs was leaking oil before, and drive flanges would eliminate that issue.

Thanks for the info! :thumbsup:


spankrjs

Scrambler Junkie
LIFETIME
CJ-8.com Member
City
Biloxi
State
MS
I may just do that. I'll be installing a used set soon, and I'll bet the splined slugs are worn just like you describe.

Also, I can tell that one of the locking hubs was leaking oil before, and drive flanges would eliminate that issue.

Thanks for the info! :thumbsup:
No problem, glad it is helpful :cheers:

Yep, the hub dials do tend to leak a little oil/grease. Usually not a lot, but enough to make the wheels nasty. The stock center caps do a good job of catching the crud :thumbsup: The drive flanges do eliminate to leaks, and a little drive line slack that develops as the hubs rack up the miles. So far, I have found that any 30 spline Dana 44 drive flanges will work :fingerscrossed:

I need to see, and report back, what it is going to take to run the factory center caps with the new drive flanges :popcorn:

I fully agree with this thinking, which means exactly nothing but it felt good to write :cheers:
Glad I could help :rotfl: :wave:


mhinchliffe

CJ-8 Member
CJ-8.com Member
City
W-S
State
NC
I used the term "thing-a-ma-jig" in a room full of engineers the other day and it stuck! That's what we called the particular item for the duration of the project......all this brain power and just look.....


spankrjs

Scrambler Junkie
LIFETIME
CJ-8.com Member
City
Biloxi
State
MS
I will include this engine update on this thread, since this engine originally came out of this Scrambler. Any future information/install/updates on this engine will be in my Green Scrambler thread :crazy:

I drove my red Scrambler up to Birmingham, AL, and back yesterday, around 9-10 hours of interstate driving. I picked up the old 4.2 engine, that I pulled out of the red Scrambler, when I installed the new Hesco 4.0. The 4.0/new drive flanges did fine, no problems at all yesterday :thumbsup:

The old 4.2 had a "tick" consistent with RPM, low oil pressure (around 5psi at idle, around 25-30psi at 2,500 RPM), and a slight oil leak at the front end. I had Hesco completely rebuild this engine and I will be installing it in my 1983 Green Scrambler.

Anyway, a few pictures.

Besides the cracked piston skirt, all the other internal components did show wear, but no other major problems.

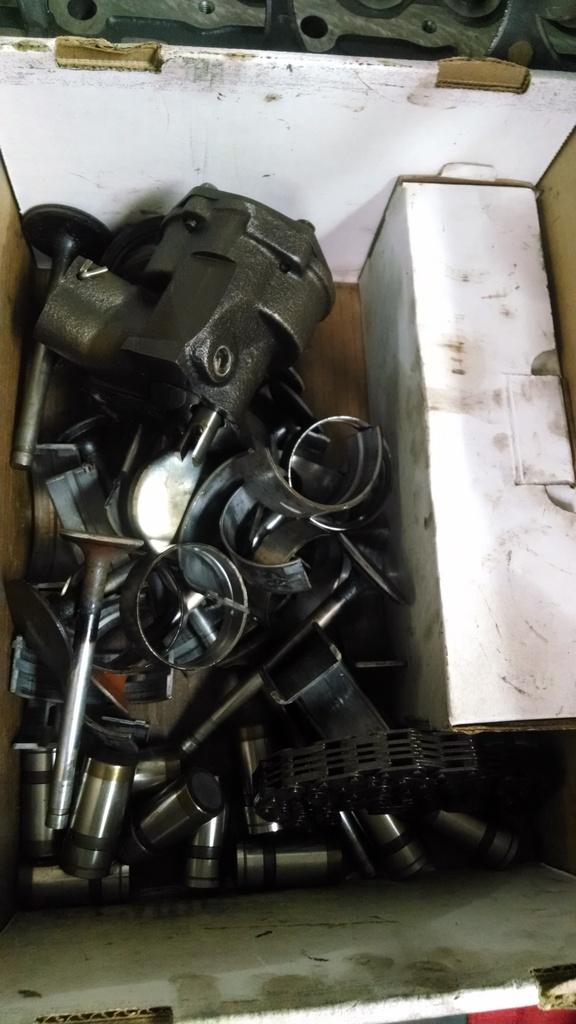

Old valves, lifters, oil pump, timing chain, cam bearings, main bearings, etc. The lifters were just starting to barely "mushroom", the main bearings were just beginning to wear into the copper.

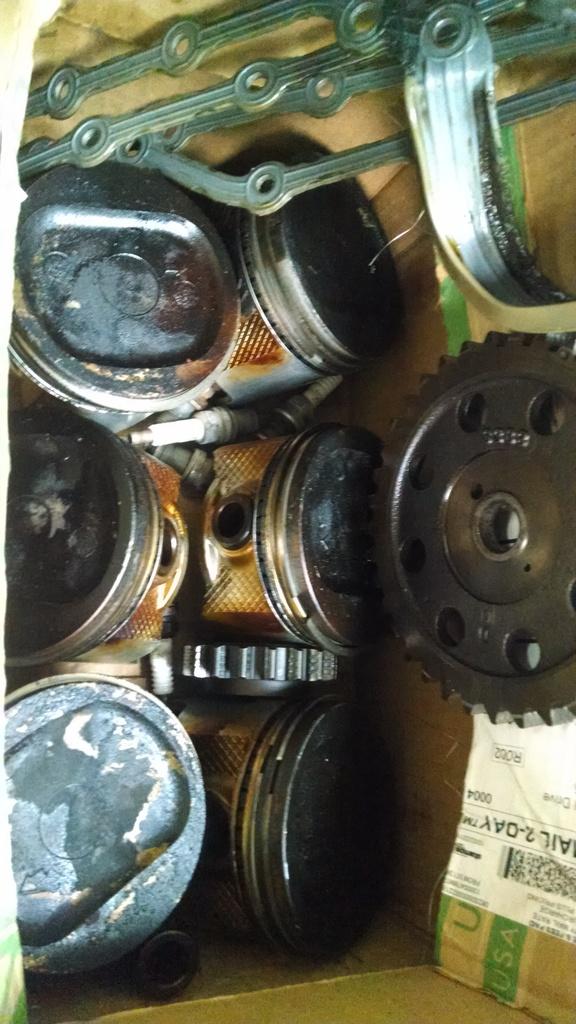

The old pistons, timing gears, etc:

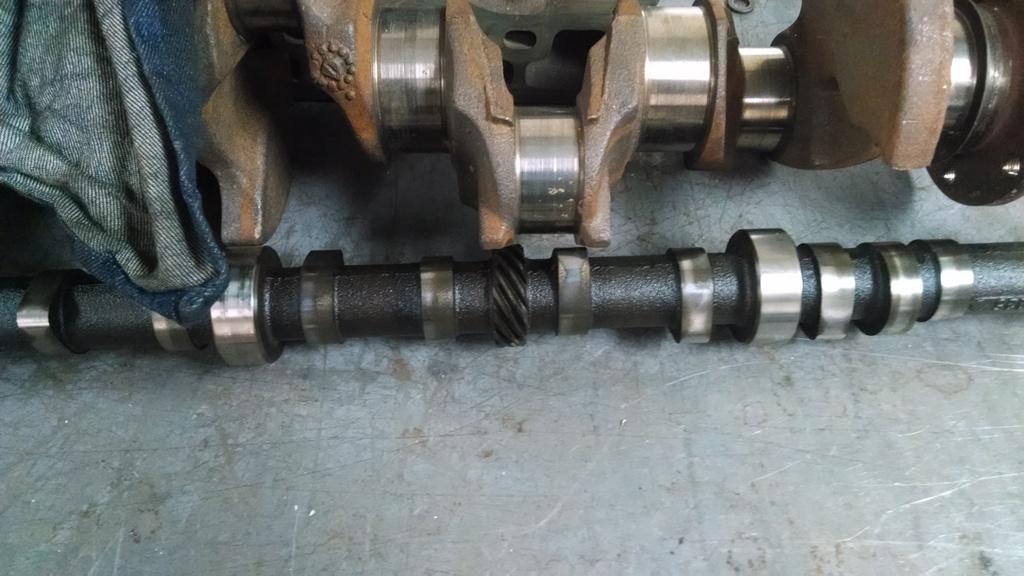

The old camshaft, showing some wear on the bearing journals/lobes:

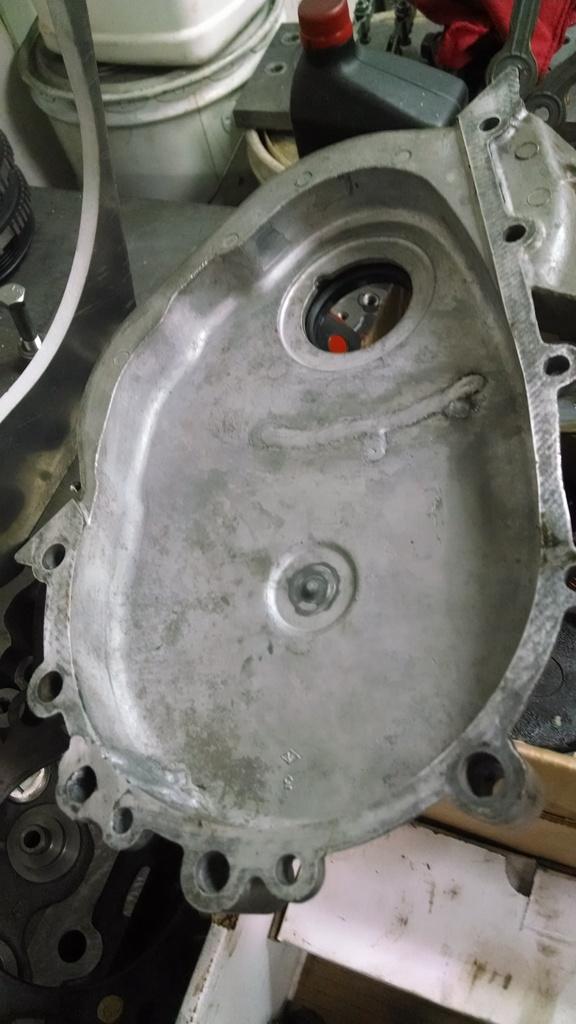

I had reused this timing chain cover when I resealed this engine, back when I rebuilt the whole Scrambler. It had a previous weld repair, either the harmonic balancer rubbed a hole in it, timing chain failure, not sure. Anyway, it had developed a hairline crack off the of the big weld repair, so that was the source of my slight front of engine oil leak.

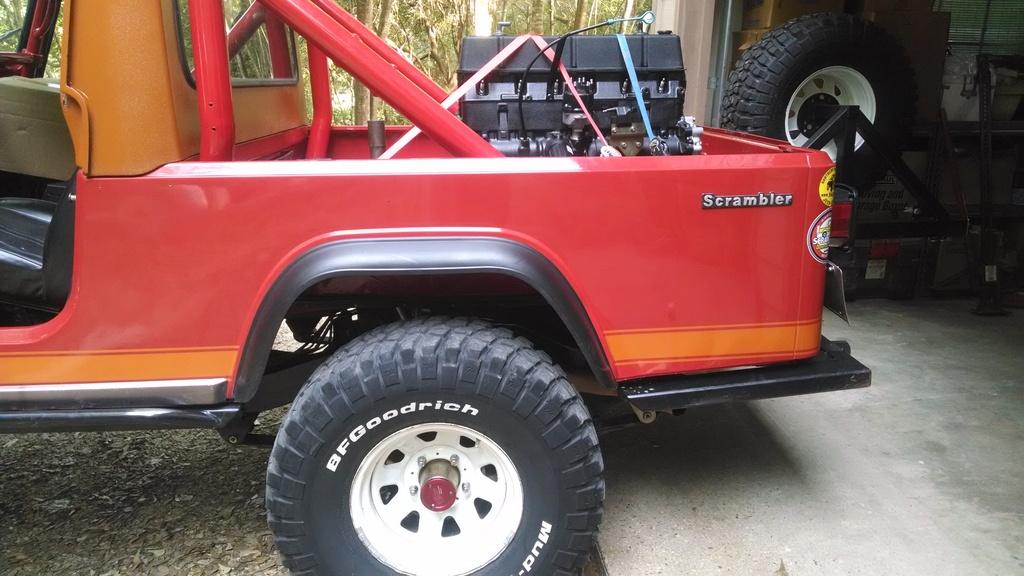

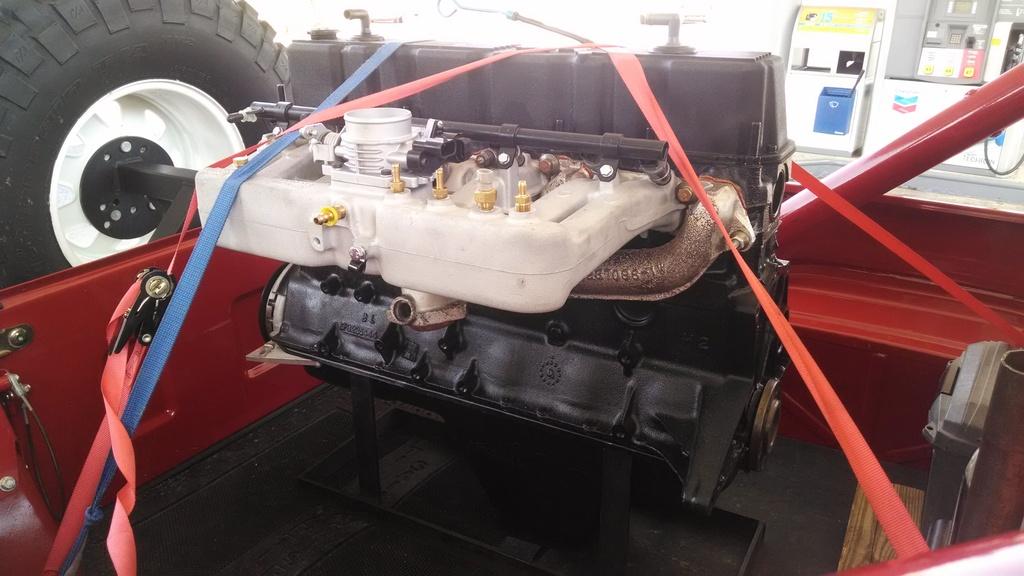

Pretty new engine strapped down for the long ride:




Back home, ready to unload, safe and sound:




In the above picture, you can see the new drive flanges without the factory center caps installed. I need to get the center caps back on!!!!!!!

You can also kind of see how the rear end squatted down some from the engine weight. It drove and handled fine, but it did squat. When I hauled the 4.0 engine in the back of the tan Scrambler, which I had added an extra main leaf to each Rubicon Express spring pack, no squat. So, if you plan on hauling heavy stuff around a bunch, I would recommend adding an extra main leaf to the Rubicon Express rear leaf packs :twocents:

Red Scrambler should be ready for the National in June, now to start working on the Green Scrambler.

That's it for now :wave:
